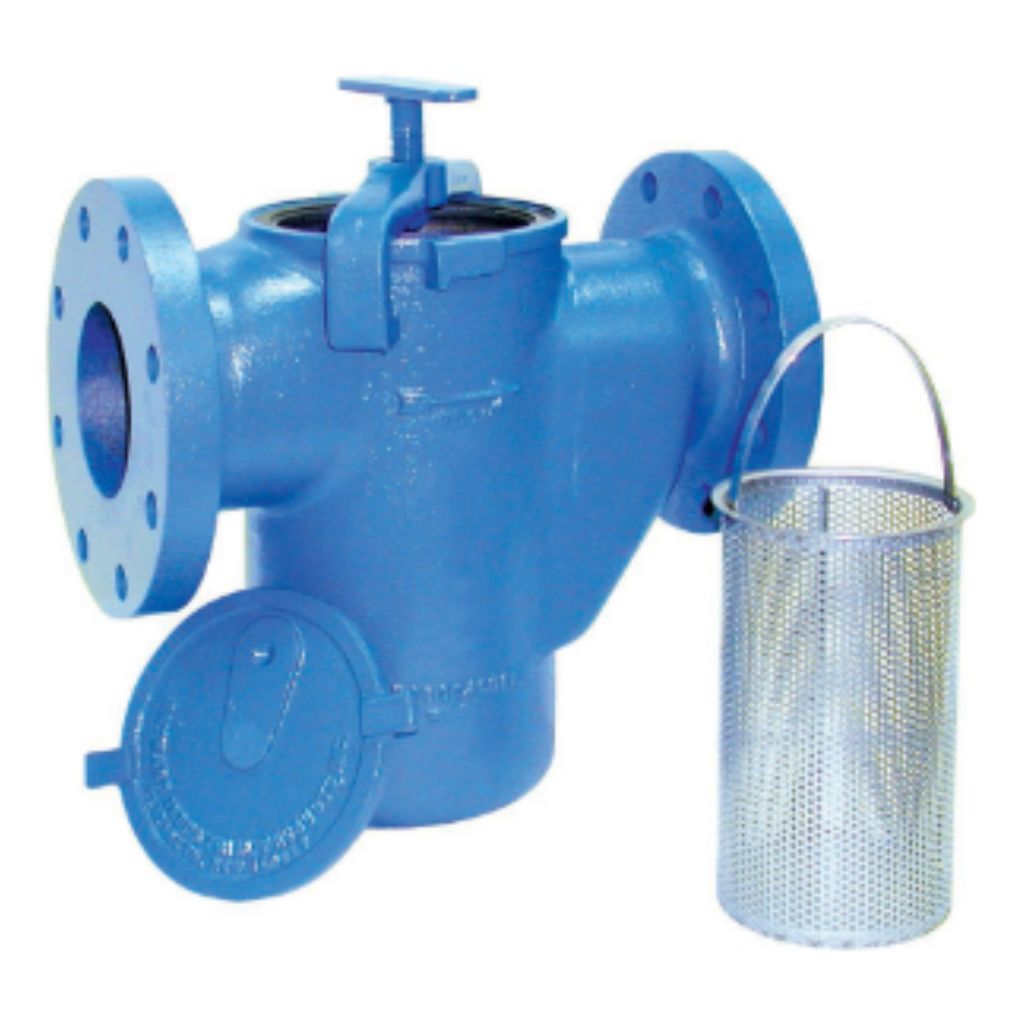

Strainer
Pipeline strainers designed to remove solid particles, debris and impurities to protect valves, pumps and instruments in fluid handling systems.
Product Description
| Design | : Y Type / Basket Type Strainer |
|---|---|
| Face to Face | : As per ANSI B16.10 |
| End to End | : Flanged Ends |
| Speciality | : Removes solid particles from flowing media |
| Materials | : CI / DI / Carbon Steel Body, SS304 / SS316 Screen |
| Mounting Flang | : Not Applicable |
| Test Standard | : As per relevant standards |
| Operation | : Inline / Manual Cleaning |
| Size | : 15mm – 600mm |
| Class | : Class 150 | PN10 | PN16 |
Get In Touch
Type: Pipeline Strainer - Y Type and Basket Type
Mesh Type: Stainless steel screen 100-200 microns
Operation: Automatic particle removal with bypass provision
Pressure Rating: Up to Class 150 (PN25)
Temperature Rating: -20°C to +300°C continuous
Port Configurations: Y-pattern for inline installation
Bypass Mechanism: Optional pressure relief valve available

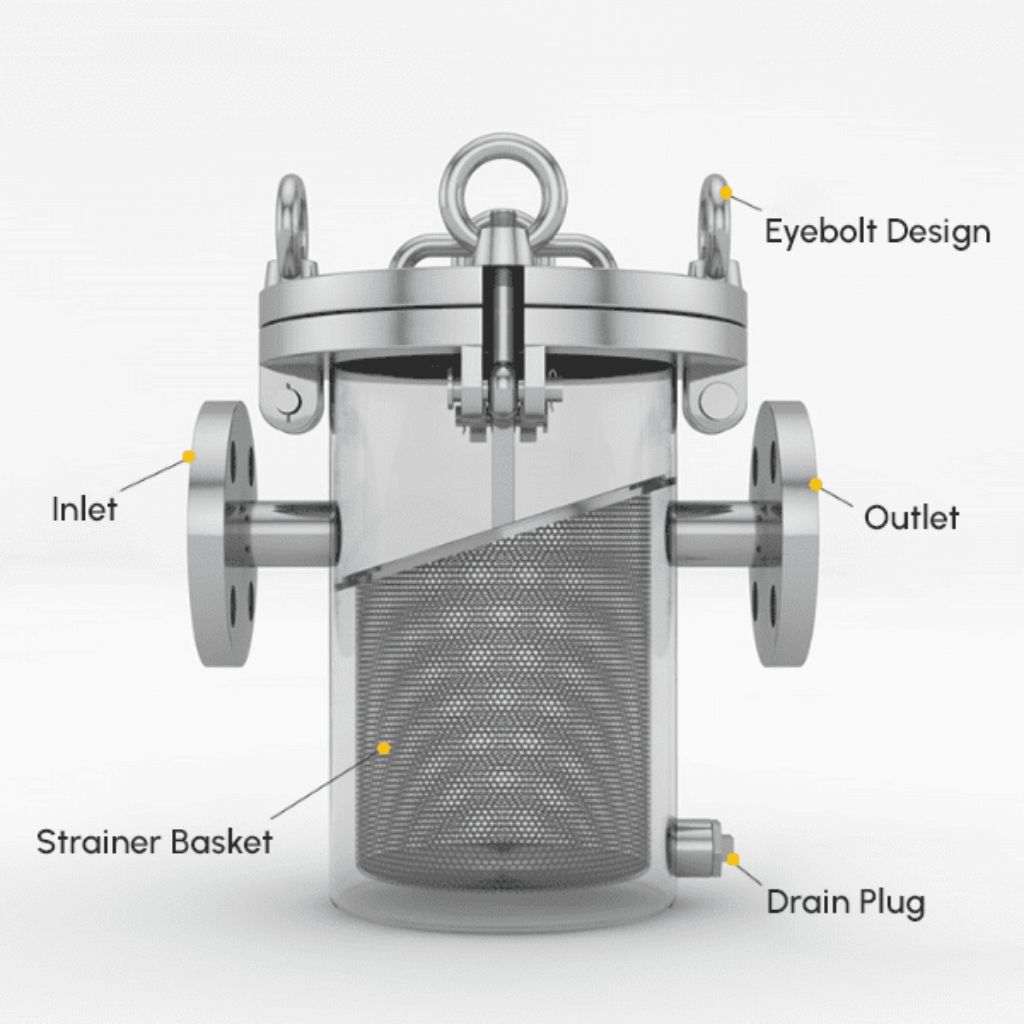

Cleaning Options: Manual drain plug, replaceable screen
Special Features: Low pressure drop, high dirt capacity
Maintenance: Easy screen removal, field replaceable elements
Industry Standards: ISO standards, PN and Class rated
