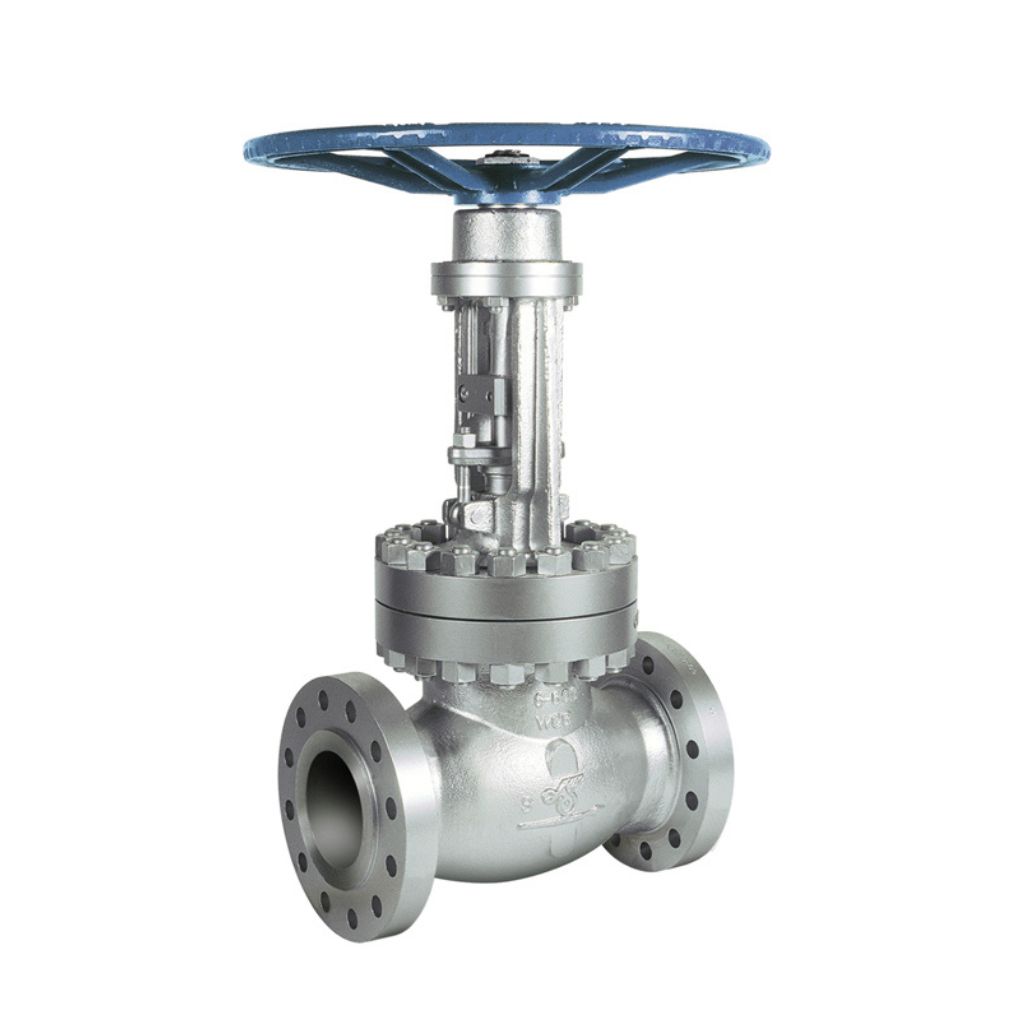

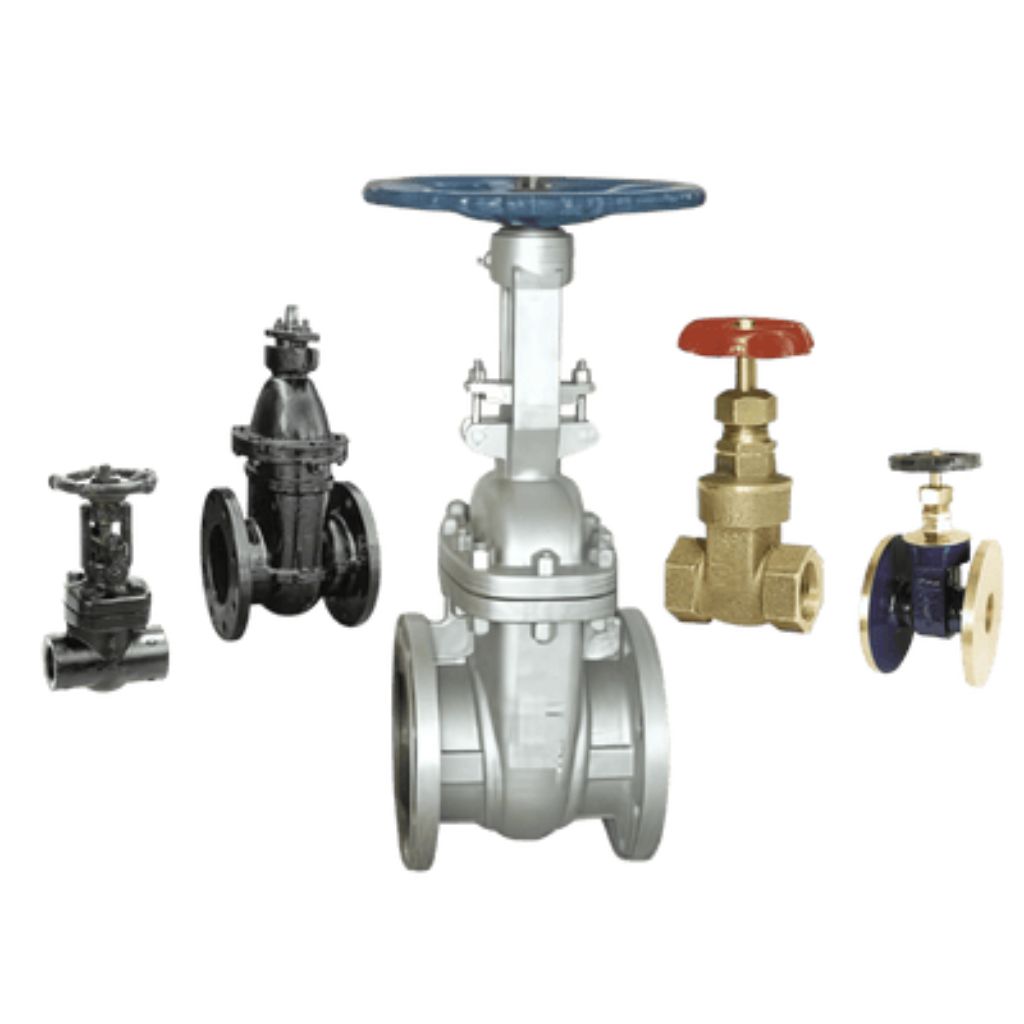

Gate Valve
Heavy duty isolation gate valves designed for full bore flow, high pressure handling and long service life in industrial and utility pipeline systems
Product Description
| Design | : API 600, BS 5150, ANSI B16.34 |
|---|---|
| Face to Face | : ANSI B16.10 |
| End to End | : Flanged |
| Speciality | : Full bore design, Leak-proof shut-off |
| Materials | : CI / DI / Carbon Steel / Stainless Steel |
| Mounting Flang | : Handwheel Operated |
| Test Standard | : API 598 |
| Operation | : Handwheel | Gear Operated |
| Size | : 50mm – 600mm |
| Class | : Class 150, Class 300, PN10, PN16 |
Get In Touch
Type: Gate Valve - Full Bore Isolation

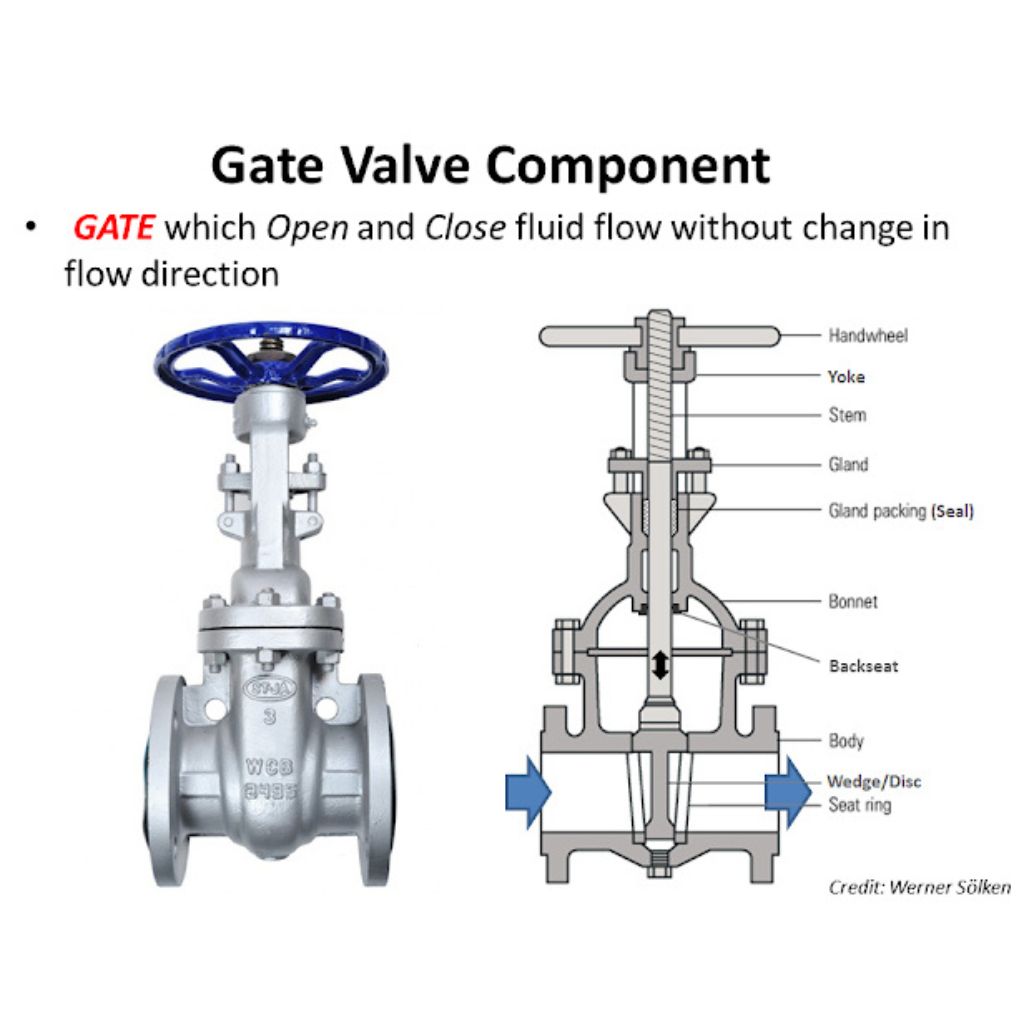

Sealing: Precision wedge disc with renewable seats
Operation: Rising or non-rising stem with handwheel
Pressure Rating: Up to ANSI Class 300 (PN100)
Temperature Rating: -20°C to +425°C continuous
Port Configurations: Full bore for zero flow restriction
Actuator Ready: ISO 5211 mounting pad available
Connection Types: Bolted flange, socket weld, or threaded
Special Features: Heavy duty bonnet, stem gland sealing
Maintenance: Replaceable seat rings and wedge discs
Industry Standards: API 600, BS 5150, ISO 6414 compliant
